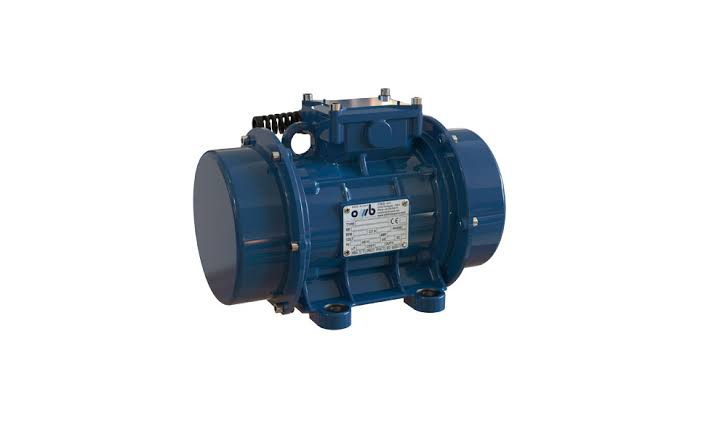

OMB BMI Series Vibration Motors are designed specifically for intermittent-duty applications requiring high vibration performance and electrical power over short operating periods. They provide a robust and economical solution for industrial equipment that operates in limited or occasional work cycles rather than continuously.

Key Features

• Designed for intermittent S2 duty – 30 minutes
• High vibration performance for short-duration operating cycles
• Three-phase power supply
• Standard 230/400V at 50Hz
• Standard 265/460V at 60Hz
• 2-pole: 3000 rpm at 50Hz / 3600 rpm at 60Hz
• IP66 mechanical protection
• Class F insulation
• Suitable for ambient temperatures from -20°C to +40°C
• Single-phase versions available on request
• Stainless-steel mass covers and Class H insulation available as options
• Cost-effective solution for applications not requiring continuous-duty operation
